Tutorial 5: Diffusion-based multimodal exploration of subtrajectories#

Tutorials 4 and 5 study a human bone marrow dataset by Mimitou et al., 2021 showing the differentiation of hematopoietic stem cells to multiple developmental fates.

Building developmental single-cell atlases involves refined analysis of developmental subtrajectories from data consisting of multiple distinct lineages and cell types unrelated directly to a subtrajectory of interest. Typically, such analysis entails clustering all cells, manual annotation of cell clusters, and supervised extraction of cell clusters that may belong to the studied subtrajectory. In this tutorial, you will select a cell subpopulation and apply a multimodal diffusion process to trace trajectories related to it using Ocelli.

Loading data and processing data#

Download data available on figshare and import necessary packages.

[1]:

import os
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'

import ocelli as oci
import anndata as ad
import numpy as np
from scipy.sparse import csr_matrix
from matplotlib.colors import LinearSegmentedColormap

! wget --content-disposition https://figshare.com/ndownloader/articles/28303928/versions/1
! unzip -o 28303928.zip
! rm 28303928.zip

--2025-01-29 18:43:00--  https://figshare.com/ndownloader/articles/28303928/versions/1
54.170.28.5, 52.17.87.113, 2a05:d018:1f4:d003:6dec:dfbb:5bc1:fcf0, ...
connected. to figshare.com (figshare.com)|54.170.28.5|:443...
HTTP request sent, awaiting response... 200 OK
Length: 37581543 (36M) [application/zip]
Saving to: ‘28303928.zip’

28303928.zip        100%[===================>]  35.84M  10.8MB/s    in 3.3s

2025-01-29 18:43:04 (10.8 MB/s) - ‘28303928.zip’ saved [37581543/37581543]

Archive:  28303928.zip
 extracting: bmmc_asapseq_atac_hscs.h5ad
 extracting: bmmc_asapseq_atac.h5ad
 extracting: bmmc_asapseq_prot_hscs.h5ad
 extracting: bmmc_asapseq_prot.h5ad

Prepare data as in tutorial 4.

[2]:

atac = oci.read.h5ad('bmmc_asapseq_atac.h5ad')
prot = oci.read.h5ad('bmmc_asapseq_prot.h5ad')

# create a joint AnnData object
bmmc = ad.AnnData(csr_matrix(([],([],[])), shape=(10927, 1)))

bmmc.obsm['atac'] = atac.obsm['X_lda']
bmmc.obsm['prot'] = prot.obsm['X_lda']
bmmc.uns['modalities'] = ['atac', 'prot']

bmmc.obs.index = list(atac.obs.index)
bmmc.obs['celltype'] = list(atac.obs['celltype'])

Multimodal Diffusion Maps#

Repeat the MDM training procedure from tutorial 4. For multimodal diffusion in later steps, Ocelli needs eigenvectors and eigenvalues of the multimodal Markov matrix. To save them in the bmmc object, set save_eigvec=True and save_eigval=True.

[3]:

oci.pp.neighbors(bmmc, n_neighbors=70, n_jobs=50, verbose=True)
oci.tl.modality_weights(bmmc, random_state=17, n_jobs=50, verbose=True)
oci.tl.MDM(bmmc, n_components=10, random_state=17, save_eigvec=True,
           save_eigval=True, n_jobs=50, verbose=True)

oci.pp.neighbors(bmmc, x=['X_mdm'], n_neighbors=20, n_jobs=50, verbose=True)
oci.tl.neighbors_graph(bmmc, x='X_mdm', n_edges=20, verbose=True)
oci.tl.fa2(bmmc, n_components=2, n_jobs=50, random_state=142, n_iter=20000,
           linlogmode=True, flags='--jitterTolerance 0.1 --scalingRatio 0.01 '\
           '--outboundAttractionDistribution true')

[atac]  70 nearest neighbors calculated.
[prot]  70 nearest neighbors calculated.

2025-01-29 18:43:10,012 INFO worker.py:1518 -- Started a local Ray instance.

Multimodal weights estimated.

2025-01-29 18:43:15,991 INFO worker.py:1518 -- Started a local Ray instance.

[atac]  Unimodal Markov chain calculated.
[prot]  Unimodal Markov chain calculated.
Multimodal Markov chain calculated.
Eigendecomposition finished.
10 Multimodal Diffusion Maps components calculated.
[X_mdm] 20 nearest neighbors calculated.
Nearest neighbors-based graph constructed.

Jan 29, 2025 6:43:29 PM org.netbeans.modules.masterfs.watcher.Watcher getNotifierForPlatform
INFO: Native file watcher is disabled
Jan 29, 2025 6:43:29 PM org.gephi.io.processor.plugin.DefaultProcessor process
INFO: # Nodes loaded: 10,927 (10,927 added)
Jan 29, 2025 6:43:29 PM org.gephi.io.processor.plugin.DefaultProcessor process
INFO: # Edges loaded: 218,540 (143,249 added)

*************************25%
*************************50%
*************************75%
*************************100%
Time = 252.694s

Multimodal diffusion of hematopoietic stem cells#

To do so, create a vector with values equal to 1 for HSCs and 0 otherwise, then run the multimodal diffusion to monitor the spread of initial cell set to phenotypically related cells.

First, recall where HSCs are located.

[4]:

bmmc.obs['HSCs'] = ['HSC' if val == 'HSCs' else 'other' for val in bmmc.obs['celltype']]

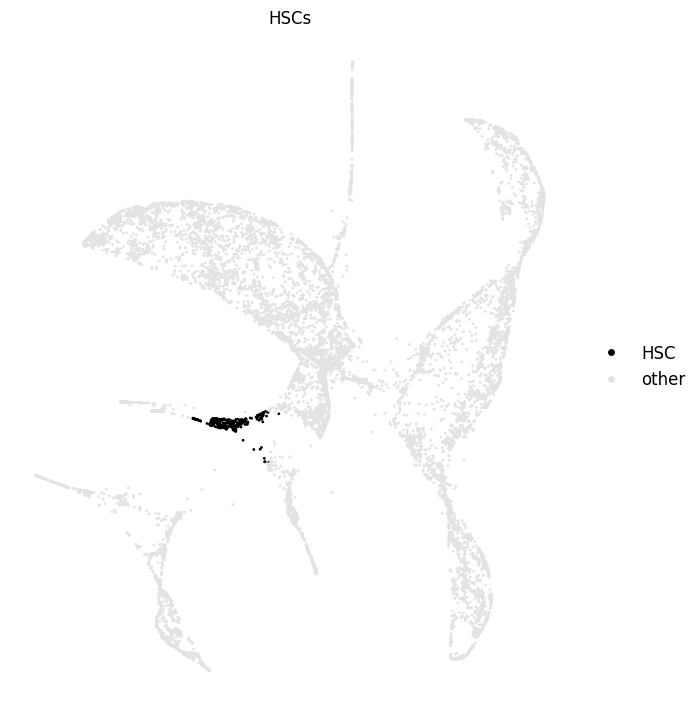

oci.pl.scatter(bmmc, x='X_fa2', c='HSCs', cdict={'HSC': 'black', 'other': '#e3e3e3'},
               figsize=(7, 7), s=4, fontsize=12)

[4]:
../_images/notebooks_tutorial5_12_0.png

Create a vector with 1s assigned to HSCs and 0s to all other cells. Then, create an AnnData object bmmc_diff with this vector as bmmc_diff.X.

[5]:

d = {'HSC': 1, 'other': 0}

bmmc_diff = ad.AnnData(np.asarray([[d[v]] for v in bmmc.obs.HSCs], dtype=np.float32))

# add eigenvetors, eigenvalues and 2D embedding to the AnnData object
bmmc_diff.uns['eigenvalues'] = bmmc.uns['eigenvalues']
bmmc_diff.uns['eigenvectors'] = bmmc.uns['eigenvectors']
bmmc_diff.obsm['X_fa2'] = bmmc.obsm['X_fa2']

Now you can run multimodal diffusion on bmmc_diff. Do it for multiple steps t to see how the trajectory signal propagates.

[6]:

for t in [1, 10, 20]:
    # create a bmmc_diff copy not to overwrite its data
    bmmc_diff_copy = bmmc_diff.copy()

    # run the diffusion with selected t
    oci.tl.imputation(bmmc_diff_copy, t=t)

    # save the diffusion output
    bmmc_diff.obs['diff_t{}'.format(t)] = bmmc_diff_copy.X

bmmc_diff

[6]:

AnnData object with n_obs × n_vars = 10927 × 1
    obs: 'diff_t1', 'diff_t10', 'diff_t20'
    uns: 'eigenvalues', 'eigenvectors'
    obsm: 'X_fa2'

Plot the diffused signal at t=1, t=10, and t=20.

[7]:

cmap = LinearSegmentedColormap.from_list('custom', ['#e3e3e3','#e3e3e3', '#ff0000', '#000000'], N=256)

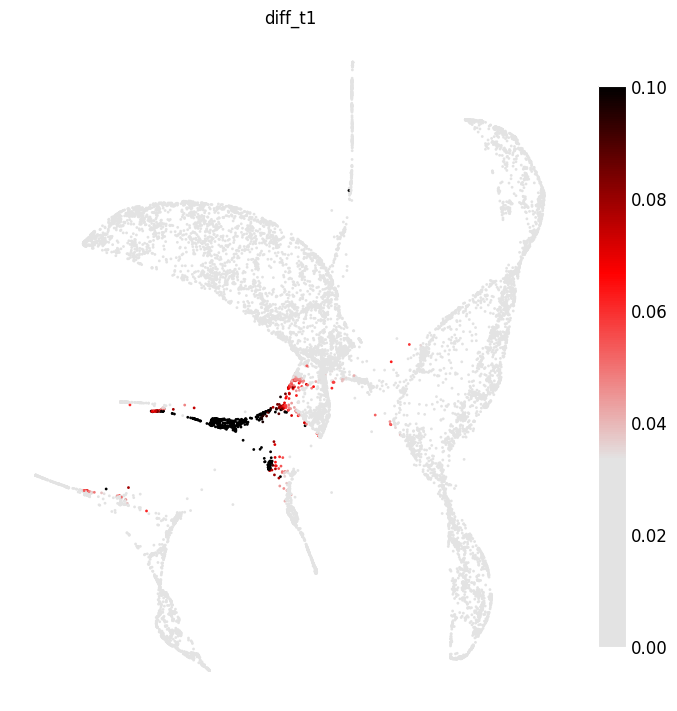

oci.pl.scatter(bmmc_diff, x='X_fa2', c='diff_t1', cmap=cmap,
               figsize=(7, 7), s=4, fontsize=12, vmin=0, vmax=0.1)

[7]:
../_images/notebooks_tutorial5_18_0.png
[8]:

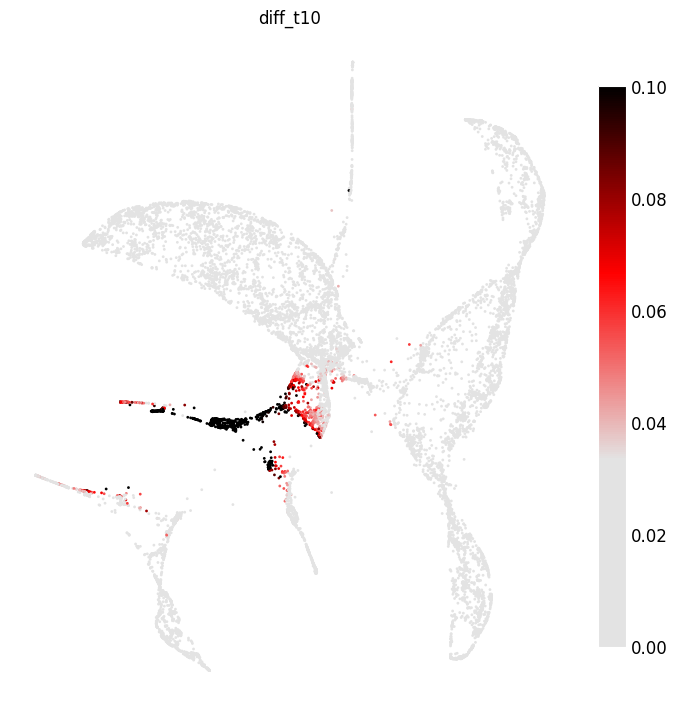

oci.pl.scatter(bmmc_diff, x='X_fa2', c='diff_t10', cmap=cmap,
               figsize=(7, 7), s=4, fontsize=12, vmin=0, vmax=0.1)

[8]:
../_images/notebooks_tutorial5_19_0.png
[9]:

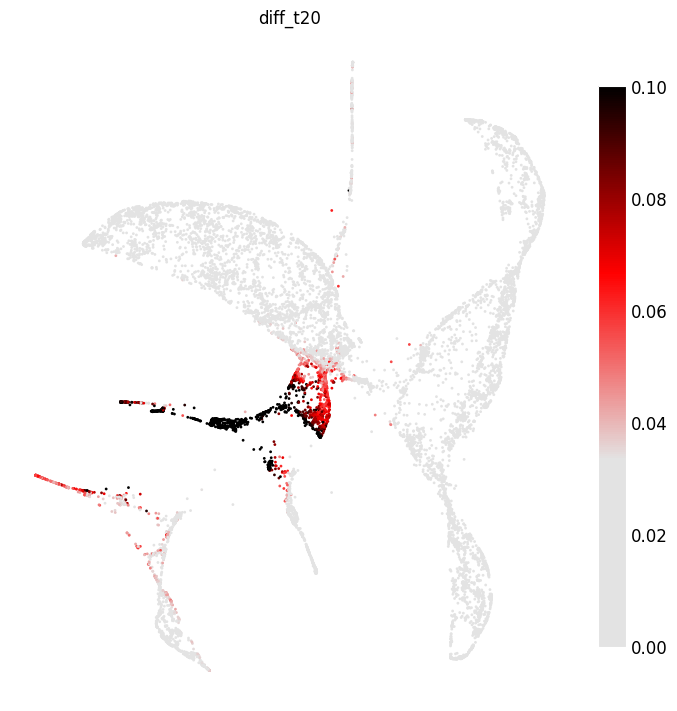

oci.pl.scatter(bmmc_diff, x='X_fa2', c='diff_t20', cmap=cmap,
               figsize=(7, 7), s=4, fontsize=12, vmin=0, vmax=0.1)

[9]:
../_images/notebooks_tutorial5_20_0.png

In order to examine only trajectories around HSCs, select cells in close developmental proximity to HSCs.

[10]:

# select cells which had a high diffused signal and t=20
bmmc_diff = bmmc_diff[bmmc_diff.obs['diff_t20'] > 0.055]

bmmc_diff

[10]:

View of AnnData object with n_obs × n_vars = 1451 × 1
    obs: 'diff_t1', 'diff_t10', 'diff_t20'
    uns: 'eigenvalues', 'eigenvectors'
    obsm: 'X_fa2'

This results in 1,451 cells. Load the raw data for this subset and generate a new multimodal embedding to explore trajectories at a higher resolution.

Finding subtrajectories around HSCs#

Compute the MDM embedding. Load raw data and find LDA embeddings of both modalities. For simplicity, we provide annotated matrices with precomputed topics.

[11]:

#atac = oci.read.h5ad('bmmc_asapseq_atac.h5ad')[bmmc_diff.obs.index]
#oci.pp.lda(atac, n_components=15, max_iter=30, random_state=17, n_jobs=50, verbose=1)

#prot = oci.read.h5ad('bmmc_asapseq_prot.h5ad')[bmmc_diff.obs.index]
#oci.pp.lda(prot, n_components=15, max_iter=30, random_state=17, n_jobs=50, verbose=1)

atac = oci.read.h5ad('bmmc_asapseq_atac_hscs.h5ad')
prot = oci.read.h5ad('bmmc_asapseq_prot_hscs.h5ad')

# create a joint AnnData object
bmmc = ad.AnnData(csr_matrix(([],([],[])), shape=(atac.shape[0], 1000)))
bmmc.obsm['atac'] = atac.obsm['X_lda']
bmmc.obsm['prot'] = prot.obsm['X_lda']
bmmc.uns['modalities'] = ['atac', 'prot']
bmmc.obs.index = list(atac.obs.index)

# run MDM
oci.pp.neighbors(bmmc, n_neighbors=50, n_jobs=50, verbose=True)
oci.tl.modality_weights(bmmc, random_state=17, n_jobs=50, verbose=True)
oci.tl.MDM(bmmc, n_components=7, random_state=17, n_jobs=50, verbose=True, save_mmc=True)

# create a 3D ForceAtlas2 embedding and project it onto a 2D plane
oci.pp.neighbors(bmmc, x=['X_mdm'], n_neighbors=50, n_jobs=50, verbose=True)
oci.tl.neighbors_graph(bmmc, x='X_mdm', n_edges=50, verbose=True)
oci.tl.fa2(bmmc, n_components=3, n_jobs=50, random_state=17, out='X_fa2', n_iter=10000, linlogmode=True, gravity=1,
           flags='--jitterTolerance 0.1 --scalingRatio 0.01')
oci.tl.projection(bmmc, x='X_fa2', phi=225, theta=45, random_state=17)

[atac]  50 nearest neighbors calculated.
[prot]  50 nearest neighbors calculated.

2025-01-29 18:47:44,702 INFO worker.py:1518 -- Started a local Ray instance.

Multimodal weights estimated.

2025-01-29 18:47:50,173 INFO worker.py:1518 -- Started a local Ray instance.

[atac]  Unimodal Markov chain calculated.
[prot]  Unimodal Markov chain calculated.
Multimodal Markov chain calculated.
Eigendecomposition finished.
7 Multimodal Diffusion Maps components calculated.
[X_mdm] 50 nearest neighbors calculated.
Nearest neighbors-based graph constructed.

Jan 29, 2025 6:48:01 PM org.netbeans.modules.masterfs.watcher.Watcher getNotifierForPlatform
INFO: Native file watcher is disabled
Jan 29, 2025 6:48:02 PM org.gephi.io.processor.plugin.DefaultProcessor process
INFO: # Nodes loaded: 1,451 (1,451 added)
Jan 29, 2025 6:48:02 PM org.gephi.io.processor.plugin.DefaultProcessor process
INFO: # Edges loaded: 72,550 (45,333 added)

*************************25%
*************************50%
*************************75%
*************************100%
Time = 32.946s

The new embedding shows a structure with multiple branching points and lineages.

[12]:

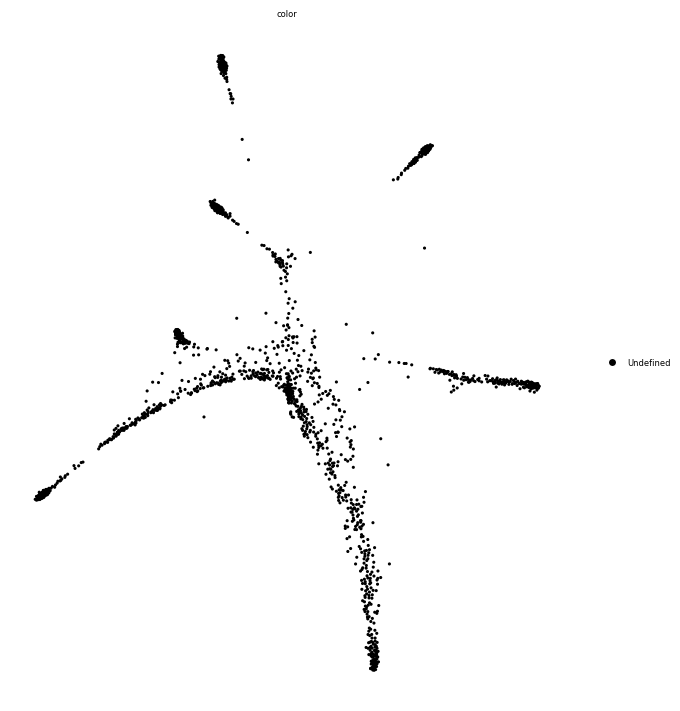

oci.pl.scatter(bmmc, x='X_proj', figsize=(7, 7), s=5)

[12]:
../_images/notebooks_tutorial5_28_0.png

To identify lineages, plot levels of selected protein markers. For example, CD71 (erythroid cells) and CD19 (B cells).

[13]:

# a colormap for plotting
cmap = LinearSegmentedColormap.from_list('custom', ['#e3e3e3', '#e3e3e3',
                                                    '#ff0000', '#ff0000',
                                                    '#000000', '#000000'], N=256)

# save normalized protein levels to bmmc.obs
cd71 = prot[:, 'CD71'].X.toarray().flatten()
bmmc.obs['CD71'] = cd71 / np.max(cd71)

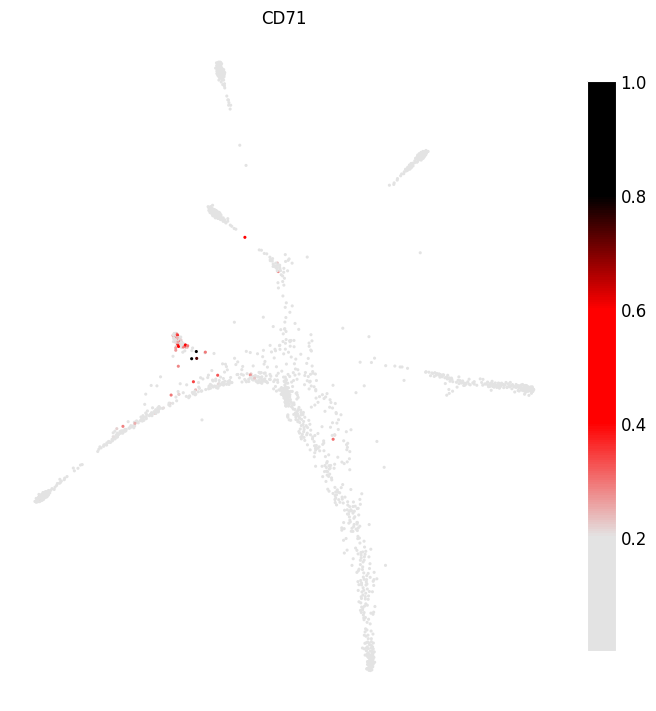

oci.pl.scatter(bmmc, x='X_proj', c='CD71', cmap=cmap, figsize=(7, 7), s=5,
               fontsize=12)

[13]:
../_images/notebooks_tutorial5_30_0.png
[14]:

cd19 = prot[:, 'CD19'].X.toarray().flatten()
bmmc.obs['CD19'] = cd19 / np.max(cd19)

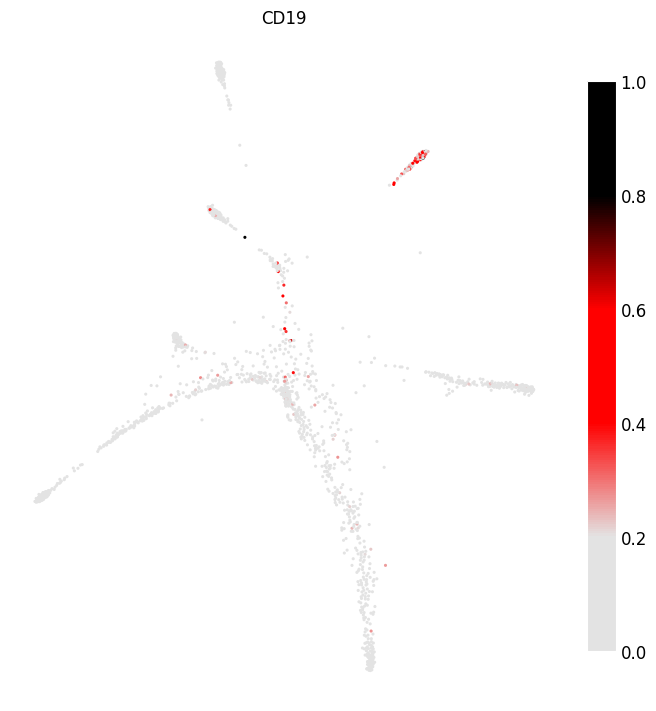

oci.pl.scatter(bmmc, x='X_proj', c='CD19', cmap=cmap, figsize=(7, 7), s=5,
               fontsize=12)

[14]:
../_images/notebooks_tutorial5_31_0.png

Multimodal diffusion from a selected subpopulation of cells enables more accurate analysis of developmental trajectories in the large single-cell datasets, for example in single-cell studies of organogenesis.

In Tutorial 6, you will apply Ocelli to a BMMCs dataset profiled with NTT-seq.
